ImageBackground

The ImageBackground component displays images with depth information for parallax effects. This is ideal for:

Creating depth-aware backgrounds
Displaying stereo images for VR
Building augmented reality overlays with depth
Visualizing RGB-D camera feeds

Basic Usage

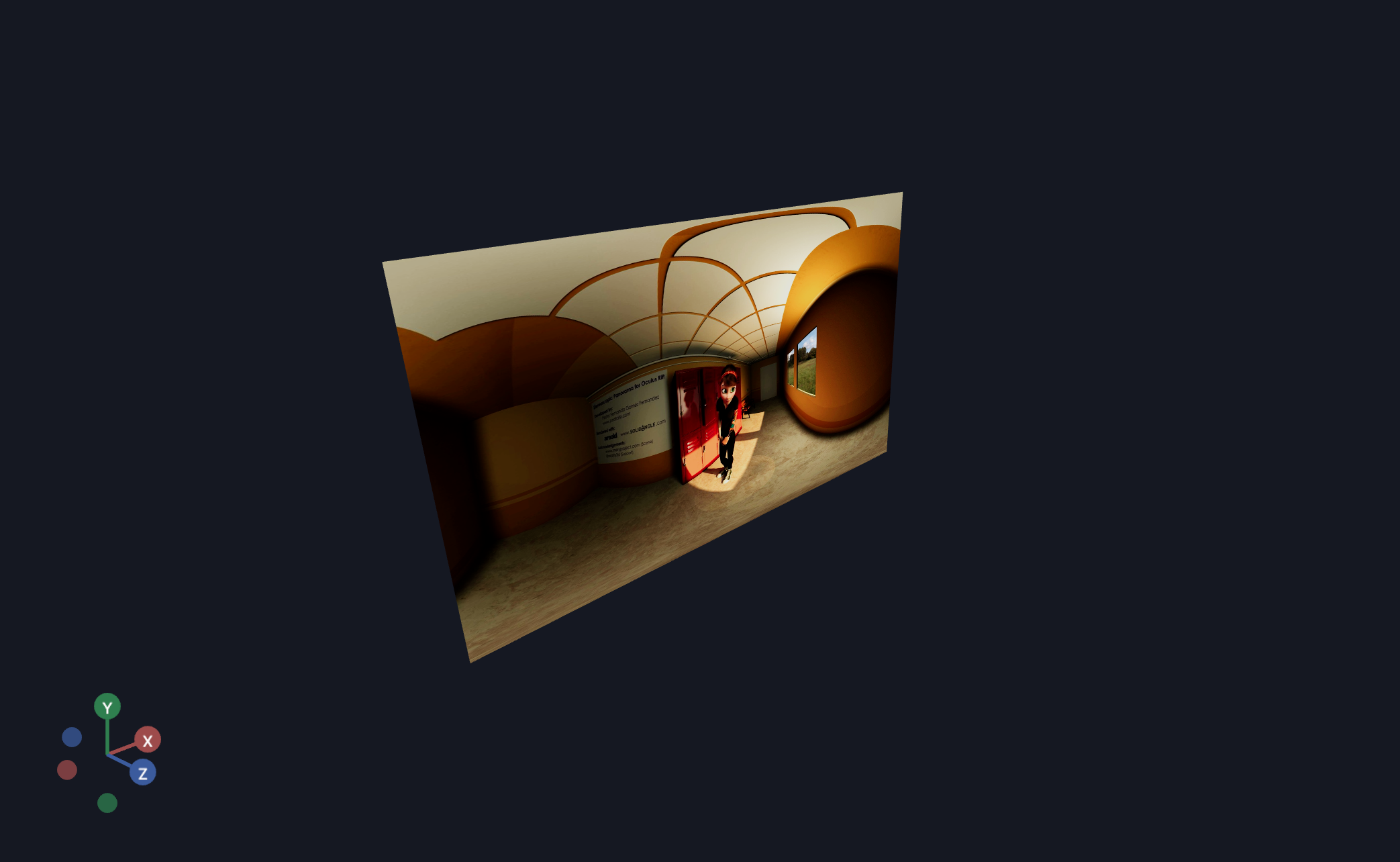

This example shows how to use background images + layers to play a 3D movie in the VisionPro and the Quest 3.

The underlying rendering engine supported a layer binary bitmask for both objects and the camera. Below we set the two image planes, left and right, to layers=1 and layers=2. Note that these two masks are associated with left eye's camera and the right eye's camera.

python

from asyncio import sleep
from pathlib import Path
import imageio as iio
from tqdm import tqdm

from vuer import Vuer
from vuer.events import ClientEvent
from vuer.schemas import Scene, ImageBackground

assets_folder = Path(__file__).parent / "../../../assets"
mary_file = "movies/mary.webm"
reader_file = assets_folder / mary_file

reader = iio.get_reader(reader_file)

app = Vuer()

# we add the handler here because the spawn(start=True) binding is blocking.
@app.add_handler("CAMERA_MOVE")
async def on_camera(event: ClientEvent, session):
    assert event == "CAMERA_MOVE", "the event type should be correct"
    print("camera event", event.etype, event.value)


@app.spawn(start=True)
async def show_heatmap(session):
    session.set @ Scene()

    while True:
        for i, frame in tqdm(enumerate(reader), desc="playing video"):
            # use the upsert(..., to="bgChildren") syntax, so it is in global frame.
            session.upsert(
                [
                    ImageBackground(
                        # We slice the left side of the stereo video
                        frame[::, :1024, :],
                        aspect=1.778,
                        height=1,
                        distanceToCamera=1,
                        layers=1,
                        # One of ['b64png', 'png', 'b64jpeg', 'jpeg']
                        format="jpeg",
                        quality=90,
                        key="background-left",
                        interpolate=True,
                    ),
                    ImageBackground(
                        # We slice the right side of the stereo video
                        frame[::, 1024:, :],
                        aspect=1.778,
                        height=1,
                        distanceToCamera=1,
                        layers=2,
                        # One of ['b64png', 'png', 'b64jpeg', 'jpeg']
                        format="jpeg",
                        quality=90,
                        key="background-right",
                        interpolate=True,
                    ),
                ],
                to="bgChildren",
            )
            # 'jpeg' encoding should give you about 30fps with a 16ms wait in-between.
            await sleep(0.016 * 2)

Key Parameters

Parameter	Type	Default	Description
`key`	str	-	Unique identifier for the background
`rgb`	ndarray	-	RGB image array (HxWx3)
`depth`	ndarray	-	Depth image array (HxW)
`distanceToCamera`	float	`1.0`	Base distance from camera

Learn More

For detailed examples of using ImageBackground, see:

Depth Image - Depth-aware backgrounds
VR HUD - Stereo image backgrounds
