Arrow

The Arrow component renders directional arrows for visualization. This is ideal for:

Visualizing vectors and directions
Showing force or velocity fields

Basic Usage

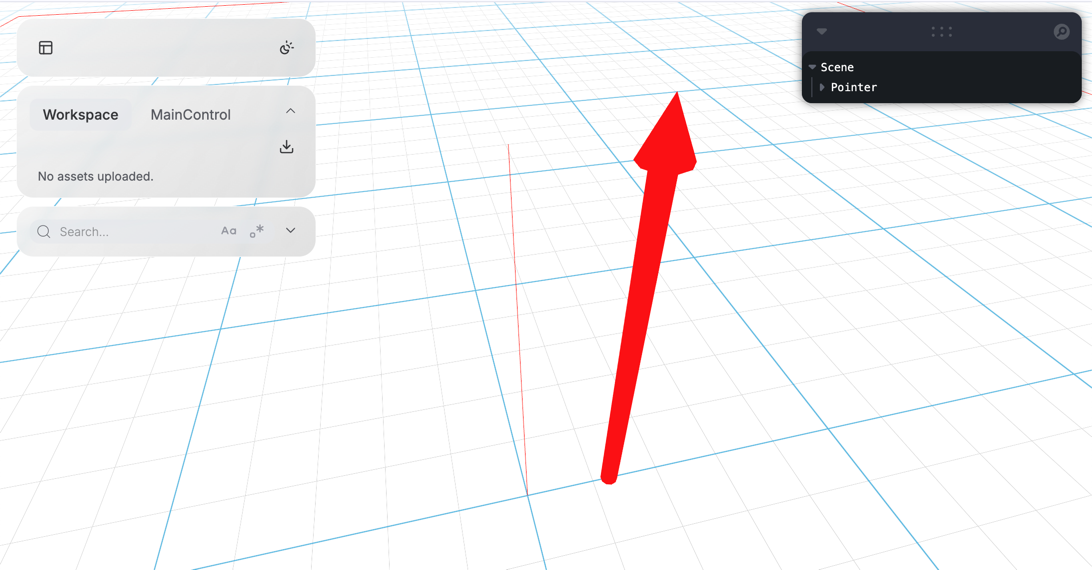

A minimal example that creates an arrow:

python

import asyncio
from vuer import Vuer
from vuer.schemas import DefaultScene, Arrow, OrbitControls

app = Vuer()

@app.spawn(start=True)
async def main(session):
    session.set @ DefaultScene(
        Arrow(
            key="arrow",
            position=[0, 0.25, 0],
            rotation=[0, -1.57, 0],
            scale=1,
        ),
        up=[0, 0, 1],
        bgChildren=[
            OrbitControls(key="OrbitControls")
        ],
    )

    while True:
        await asyncio.sleep(1.0)

Key Parameters

Parameter	Type	Default	Description
`key`	str	-	Unique identifier for the arrow
`position`	list	`[0,0,0]`	Arrow origin position
`rotation`	list	`[0,0,0]`	Arrow rotation (Euler angles)
`matrix`	list	-	4x4 transformation matrix (16 numbers). Overrides position and rotation
`scale`	float	`1.0`	Overall arrow size
`headScale`	float	`1.0`	Scale factor for the arrow head
`lod`	int	-	Level of detail - number of segments for the cone and stem
